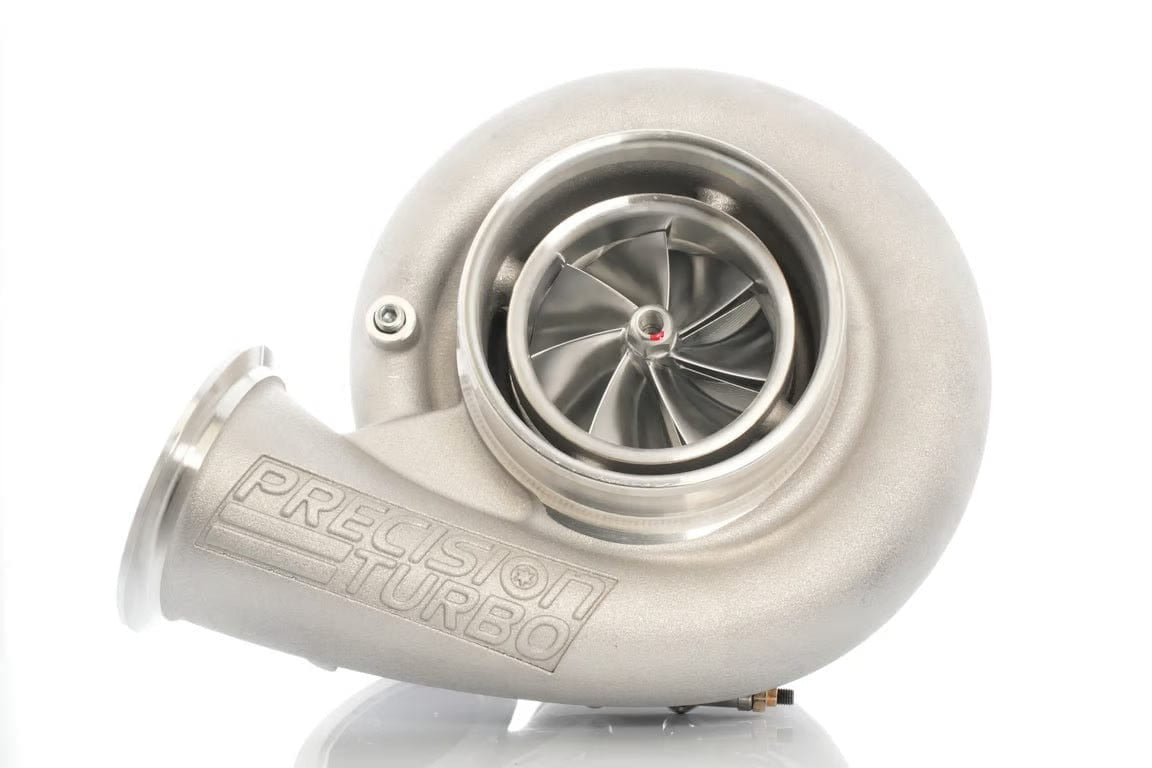

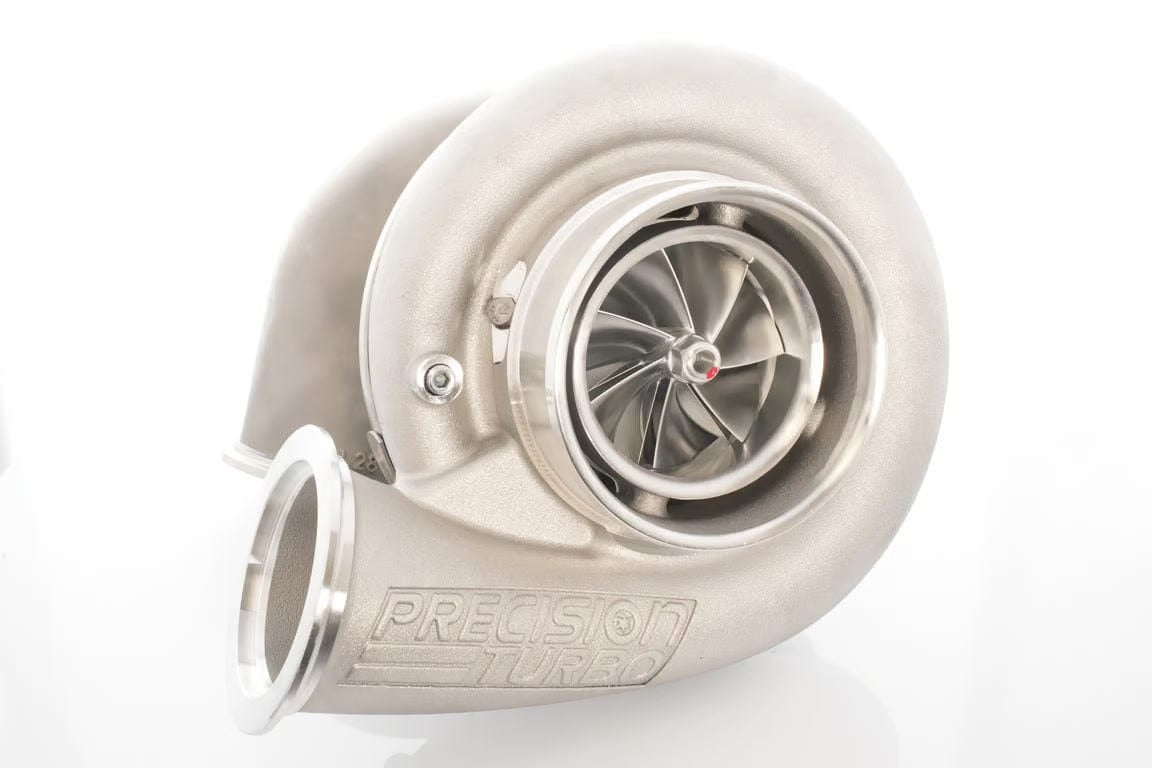

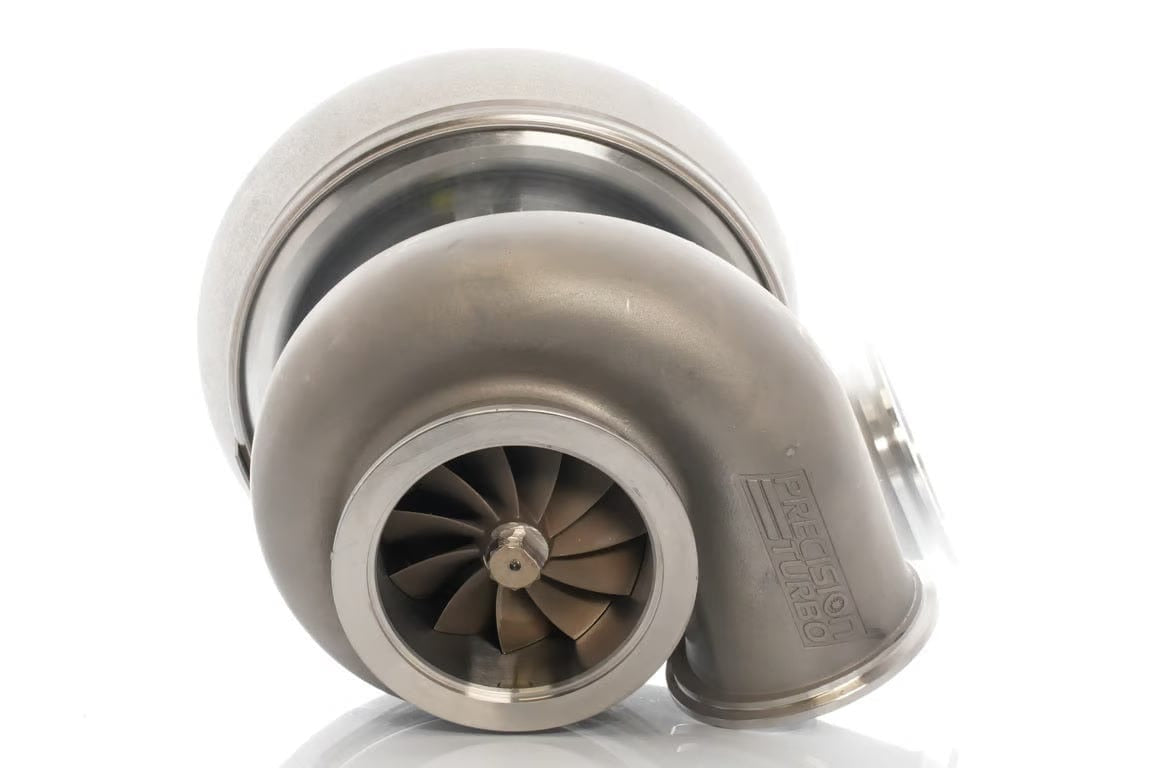

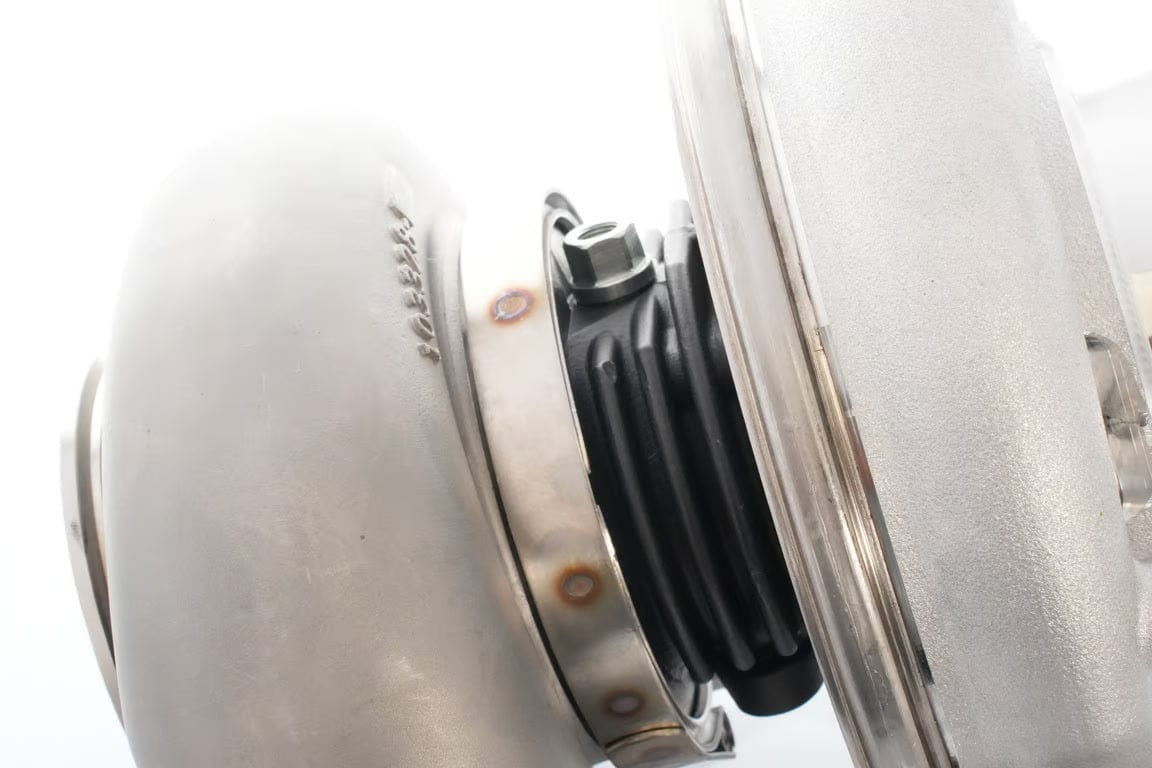

All new sportsman frame sized 7680 turbocharger features a NEXT GEN, 76mm CEA compressor wheel mated to our 80mm high flow turbine wheel. This unit is based on the Sportsman ball bearing turbo and is available with multiple turbine housing options. Designed to take your build to the NEXT GENERATION, the NEXT GEN Sportsman 7680 is a record setting turbocharger and is a great option for those looking to make upwards of 1,475hp.NEXT GEN 76mm CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging. (76.0mm Inducer /112.9 Exducer) Air-cooled, Dual Ceramic Ball-Bearing Center Housing Rotating Assembly (CHRA) Sportsman compressor cover with a 5.0” inlet and 4.2” outlet 80mm CEA turbine wheel (80mm Exducer / 88.0mm Inducer) Air-cooled, dual ceramic ball bearing Turbine housing options: T4 divided inlet with .98 A/R, 1.12 A/R, or 1.28 A/R and 4 5/8” OD v-band discharge. Also available in a stainless steel v-band inlet/v-band outlet configuration for a $206.00 upcharge. Available A/R ratios are 1.00, 1.15, and 1.28 Rated to support 1,475 flywheel horsepower.
