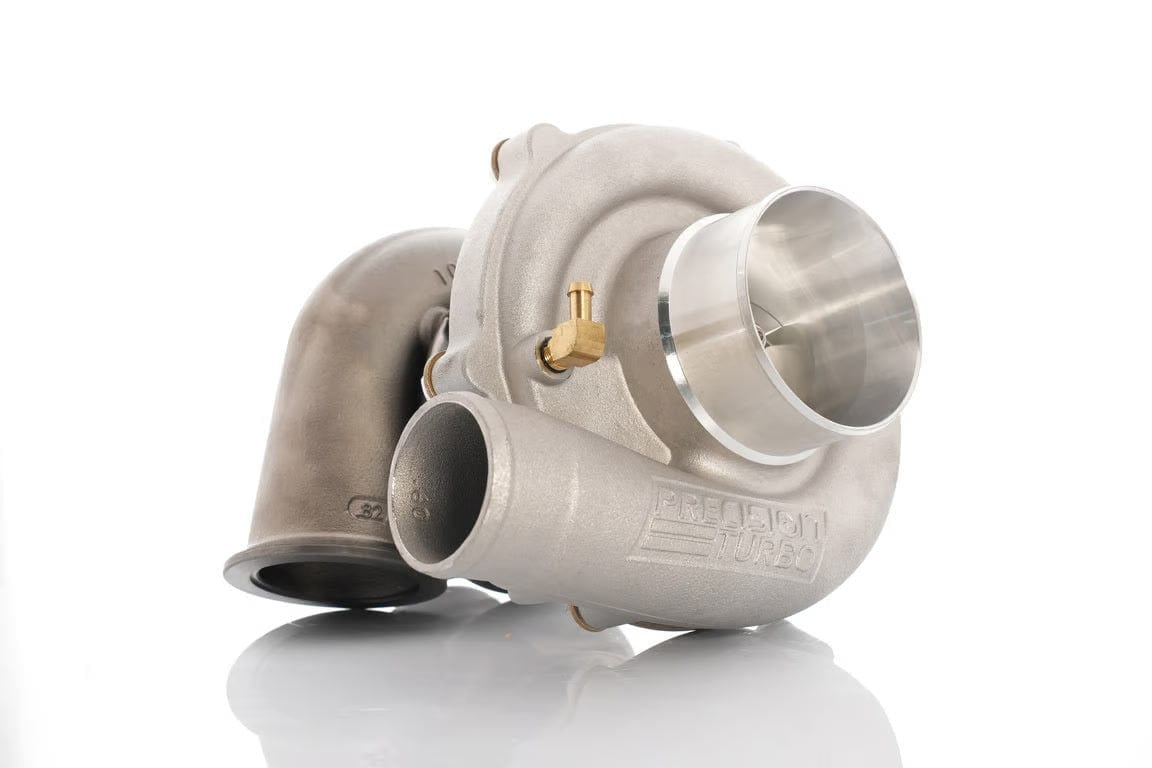

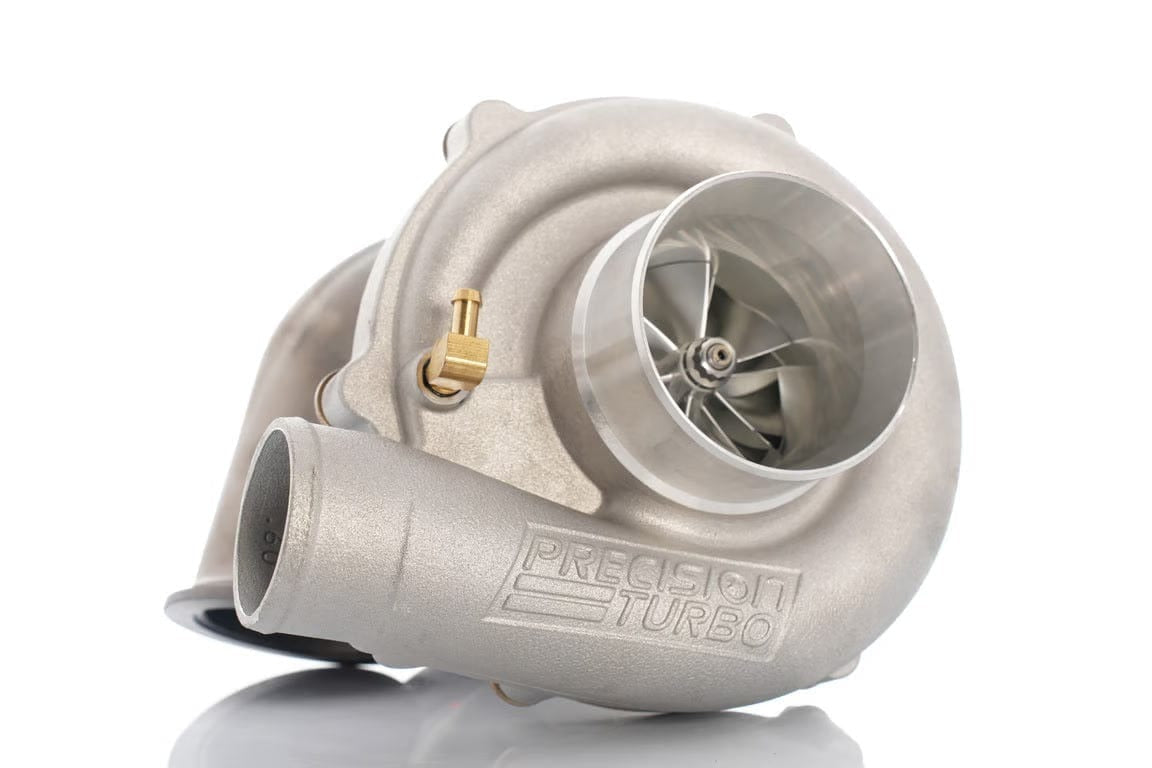

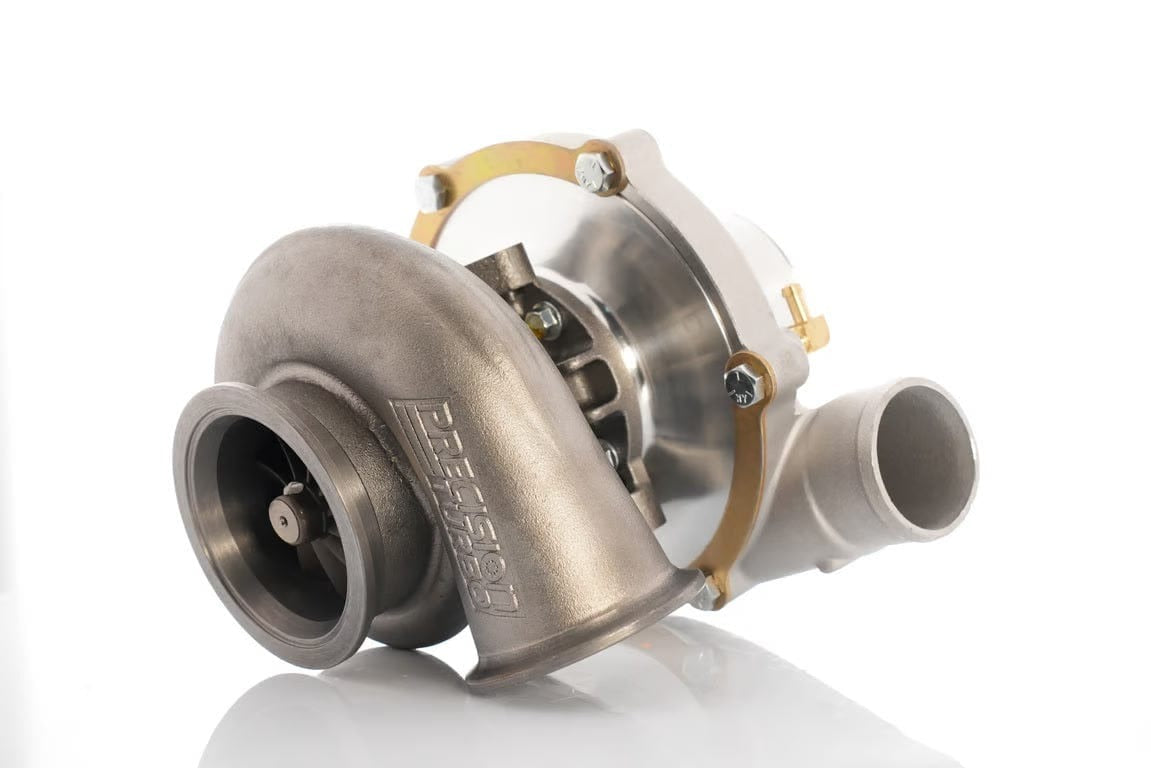

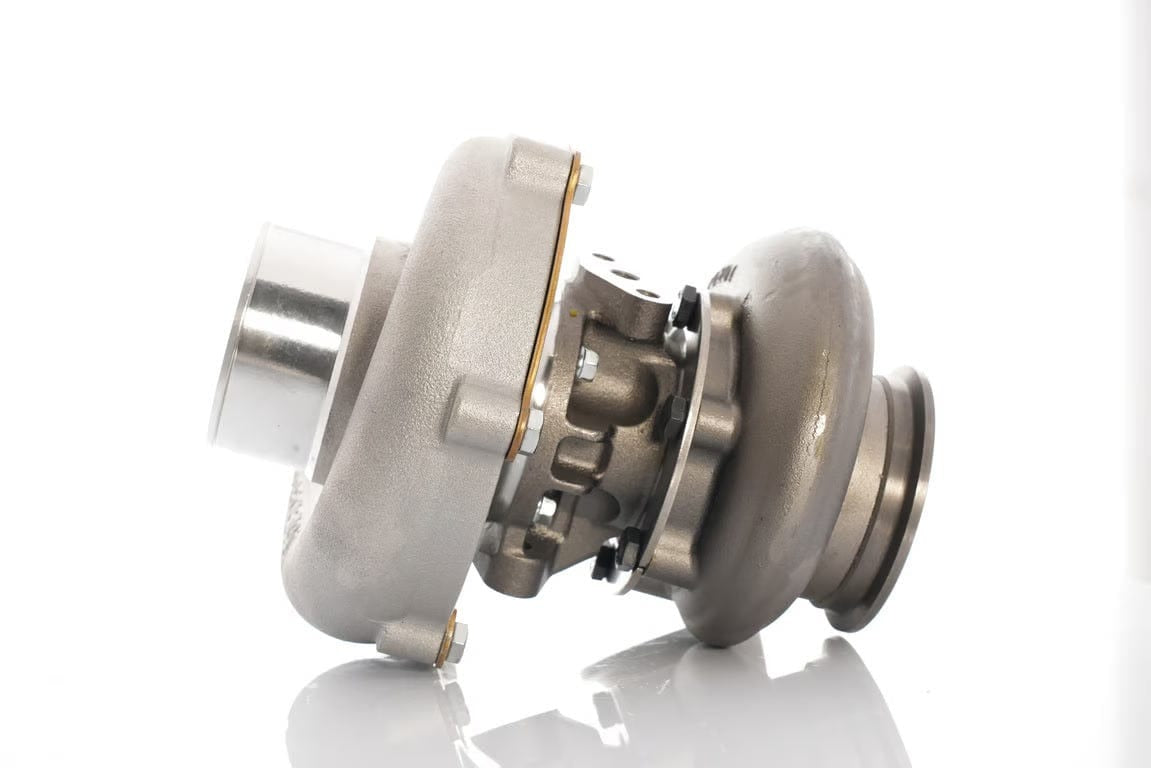

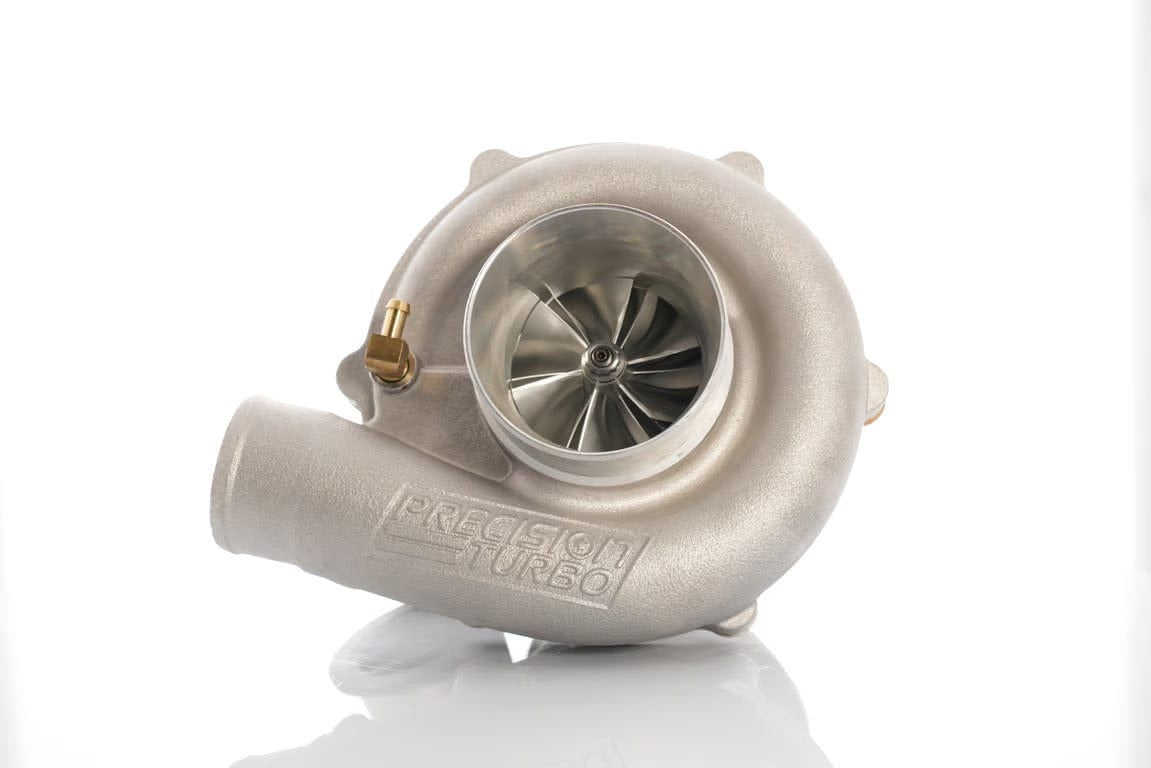

PTE's PT5862 Turbocharger features the following: HP Rating: 640hp Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging Higher efficiency and faster transient response for maximum power and performance 58mm inducer compressor wheel Compressor cover options: - "B" compressor cover 2.8" inlet/2.0" outlet - "E" compressor cover 3.0" inlet/2.0" outlet - "Ported S" compressor cover 4.0" inlet/2.5" outlet Exclusive CEA® (Competition Engineered Aerodynamics) 62mm, 76 trim turbine wheel Turbine housing options: - cast 310 stainless steel THV5S / 1.05 A/R - T3 .63 or .82 A/R with 4 bolt (2.5") discharge - T3 .63 A/R with 5 bolt discharge (with or without wastegate hole) - T3 .63 or .82 A/R with 3" OD (outer diameter) V-Band discharge - V-Band inlet .64 or .82 A/R with V-Band discharge - T4 Tangential .58 or .68 A/R with 3 5/8" OD (outer diameter) V-Band discharge - T4 Divided .84 A/R with 3 5/8" OD (outer diameter) V-Band discharge - Mitsubishi .63 A/R - Buick .63 A/R - K26 .82 A/R * NOTE: Additional cost may apply for certain housings. Available with either a Hydrodynamic 360 thrust bearing system, or an Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
