HKS S-Type Oil Cooler Kit - 2022-2024 Toyota GR86 / Subaru BRZ

S-Type Oil Cooler Kit for the 2022-2024 GR86 and BRZ

The HKS S-Type Oil Cooler Kit for the 2022-2024 Toyota GR86 and Subaru BRZ adds external oil cooling to the FA24 platform. The FA24 runs at higher power levels than the FA20 and generates corresponding oil temperatures. At the track, sustained high-load operation pushes oil temperatures beyond the range where oil viscosity and film strength are optimal. The S-Type oil cooler kit addresses this with a properly engineered external cooling solution specific to the FA24 application.

Specs & Highlights

• External oil cooler system for FA24
• Thermostat controlled to prevent over-cooling
• Includes cooler, lines, fittings, and hardware
• Addresses elevated oil temperatures under sustained track use
• S-Type designation for 2022+ GR86/BRZ application
• Fitment: 2022-2024 Toyota GR86 / Subaru BRZ

19-Row Core, 295mm × 185mm, 80°C Thermostat Opening

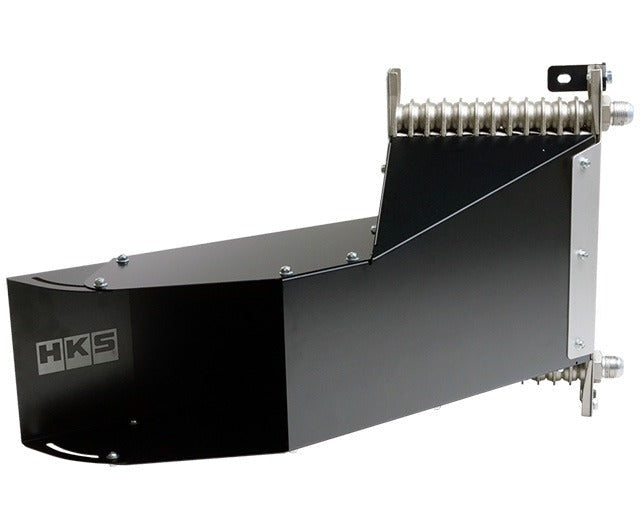

The S-Type kit uses a 19-row stacked-plate core, 295mm × 185mm × 55mm, with AN-10 connections, slightly larger than the FA20 kit (AT012) to account for the FA24's higher oil volume and flow rate. Thermostat opening temperature is 80°C (176°F), calibrated for the FA24's slightly higher normal operating oil temperature. The larger core provides approximately 18–28°C oil temperature reduction under sustained track conditions. Total added oil volume is approximately 0.6 liters.

FA24 Oil System and Higher Operating Temperature

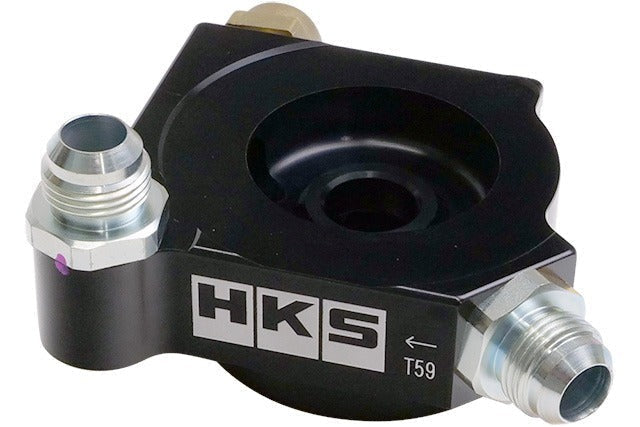

The FA24's additional power output over the FA20 means more heat is generated in the oil during extended performance driving. The thermostat in the S-Type kit ensures the oil reaches operating temperature normally before the cooler comes online. Critical for cold-start protection and short-trip operation. Once at temperature, the cooler maintains oil temperature in the optimal range.

Add 0.6 Liters to Oil Capacity After Install

Installation is a bolt-on process using the FA24's oil system access points. The kit includes all lines, fittings, and hardware for a complete installation. Professional installation is recommended to ensure correct line routing and connection.

The FT Breakdown

The S-Type oil cooler is the appropriate upgrade for GR86 and BRZ owners who track their cars regularly. The FA24 with the oil cooler installed is a significantly more track-worthy engine than without it. The difference in sustained performance capability between a car that manages oil temperature and one that does not is real and measurable. The 19-row S-Type core versus the 13-row FA20 core reflects the FA24's higher oil flow volume at the torque outputs the second-generation engine produces. Installing the FA20 oil cooler kit on an FA24 would result in insufficient cooling capacity — HKS sized the S-Type appropriately for the engine it is designed for. The 80°C thermostat opening temperature versus the FA20 kit's 70°C also reflects the FA24's calibrated normal operating temperature being slightly higher.
